UV Curing Process 100 LPI Resin PET Lens Plastic Flip 3D Lenticular Sheet

FOB Reference Price:Get Latest Price
US $0.75-1.25 / Piece | 100 Piece/Pieces (Min. Order)
Supply Ability:
10000 Piece/Pieces per Month
Port:
Shanghai
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
KDX
Model Number:
KDX - 100lpi flip lenticular sheet
Material:
UV Resin and PET made lenticular sheets
Thickness:
0.35mm
Size:
710 x 510mm
Keyword:
100lpi PET 3d flip lenticular sheets
Process:
Newest UV curing cold process
Lenticular sheets LPI:
100LPI Flip lenticular sheets ( 20lpi,40lpi,75lpi,150lpi,200lpi)
Thickness of 100lpi lenticular sheet:
0.35mm (0.6mm for 100lpi 3D lenticular sheets )
Feature of lenticular sheets:
Scratch resistance
Key points:
Optical Grade flip lenticular sheet plastic 3D lenticular film roll
Application:
flip/3D picture, poster advertising, 3D printing 3D photo
Advantage:
Own core technology--uv curing, high precision optical film technology
Name:
100lpi PET Plastic Flip 3D Lenticular Sheet
Packaging & Delivery
Packaging Details
Standard carton for Lenticular Sheets
Delivery Time
Shipped in 7 days after payment

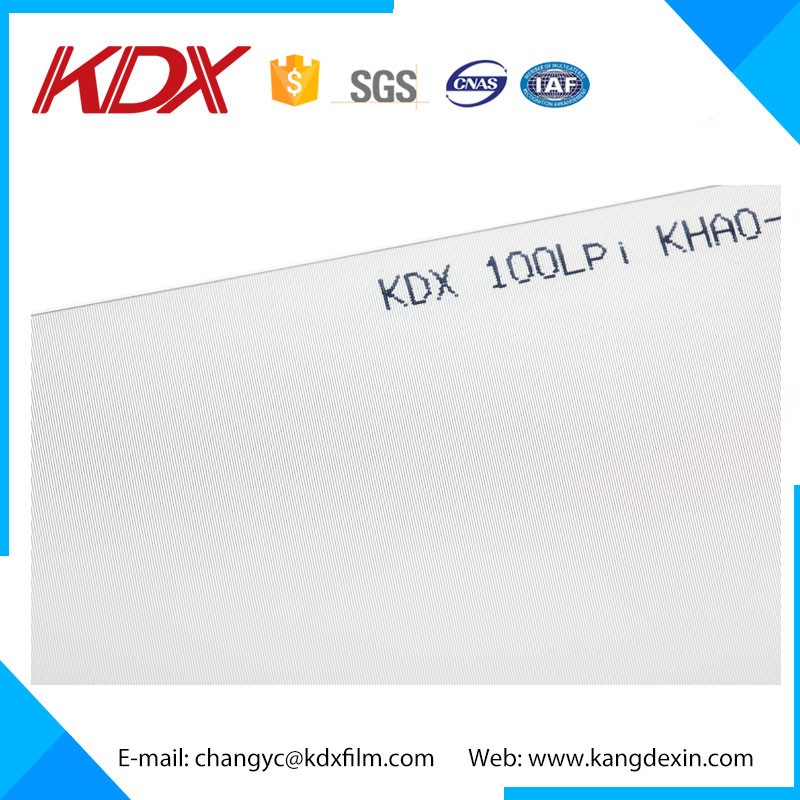

              UV Curing Process 100 LPI Resin PET Lens Plastic Flip 3D Lenticular Sheet

KDX CO.,LTD is a manufactory of Glasses-Free 3D products with R&D, and provides customers with
one stop service, creating and converting the 2D picture to 3D/ Flip designs, produce the PET lenticular material and 3D/Flip final products, such as cards, photos, pictures, light boxes, phone cases, posters etc.
(stock code: 002450)



Lenticular Sheets and Film -KDX use the new generation of technology--UV curing process, KDX lenticular sheets have the best 3D effect and best quality ever.

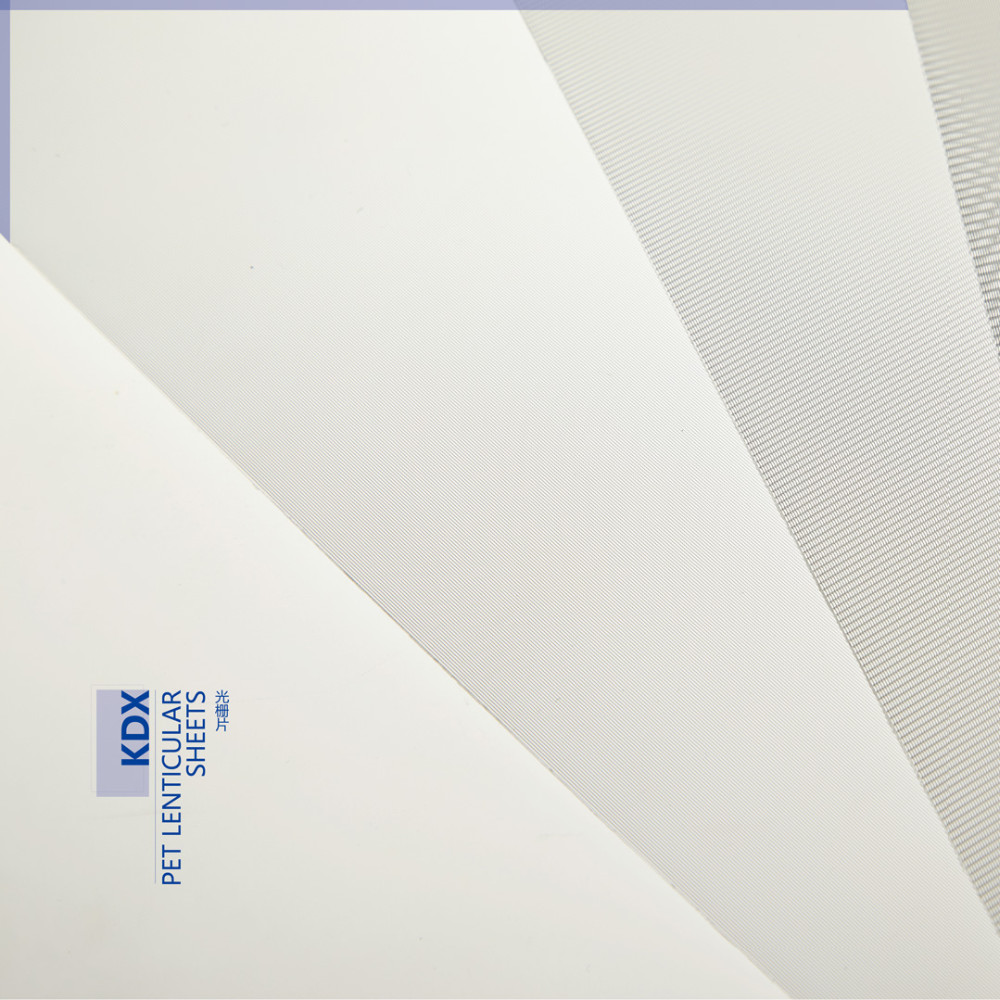

Parameter of PET lenticular sheets and film material

Product

LPI

Effect

Material

Shape

Thickness(mm)

Size(mm)

MOQ

Note

Print type

Lenticular film

20

3D

PET

Roll material

0.236

width:2160

20m/roll

with 9.7mm PS board

inkjet/UV flatbed

Lenticular film

20

Flip

PET

0.28

width:2160

with 6mm PS board

inkjet/UV flatbed

Lenticular film

40

3D

PET

0.229

width:1160

with 2.8mm PS board

inkjet/UV flatbed

Lenticular film

40

Flip

PET

0.254

width:1160

with 2mm PS board

inkjet/UV flatbed

Lenticular sheets

75

3D

PET

Sheet material

0.6mm

710*510 (lens run parallel to both sides)

100 sheets

/

offset

Lenticular sheets

75

Flip

PET

0.45mm

100 sheets

/

offset

Lenticular sheet

100

3D

PET

0.6mm

100 sheets

/

offset

Lenticular sheet

100

Flip

PET

0.35mm

200 sheets

/

offset

Lenticular sheet

150

3D

PET

0.26mm

200 sheets

/

offset

Lenticular sheet

200

3D

PET

0.215mm

200 sheets

/

offset



Advantage of  lenticular sheet
KDX use optical grade PET film, coating the UV liquid resin on the PET surface first (resin layer thickness < 0.1 mm), use the property of the UV resin curing when it's exposed in UV light in engraving process, achieve the UV resin convert to the lenticular structure in the PET surface .The whole production process in dust-free, constant temperature, and constant humidity workshop, and use the ultra-precision engraving cylinder, without heating and cooling.


The benefit we can get from UV curing cold process
1. The lens structure is made of acrylic resin, which has better optical property than only PET.
2. Because UV curing process is a cold process. So the optical property of PET material won't have any change during the producing process. KDX lenticular sheets are clearer, brighter, the transparency reaches 90%+. These together makes much better 3D effect.
3. The pitch of every single lens is the same, the tolerance is only 0.1u. So there's no distortion of the image, and no dizziness feeling while viewing.
4. The hardness of acrylic resin is higher than PET. So the anti-scratching property is better.



COMPARISON of KDX PET lenticular sheets with other brand

 Plastic Flip 3D Lenticular Sheet

KDX

(UV CURING)

OTHER BRANDS

(EXTRUSION)

THICKNESS tolerance (um)

5

50

SINGLE LENS PITCH tolerance (um)

0.1

5

LENS HEIGHT tolerance (um)

3

5

Light transmittance (%)

>90%

80

Surface hardness (h)

HB~H

B~H

Slitting tolerance (um)

25

50

Stability

High

Low, severe deviation of the lens, especially on the edge.

Clearness

Clear

Focus is inaccurate and fuzzy

Comfort

Comfortable

Dizzy

Non-defective rate

More than 90%

Less than 60%


Application of PET 3D lenticular lens sheets & film
3D / Flip lenticular sheets and lenticular film made advertising light box, picture, poster, card, phone case, bookmark etc.

Service from Kangdexin manufactoy ------- one stop service
-- Produce 3D / flip pet lenticular sheets and lenticular film roll

-- Creating and converting 2D image to 3D design
-- Produce 3D / flip lenticular final products
Advantage of Kangdexin lenticular industry

1. premium optical film technology: high precision,high resolution,high uniformity, large width 3D film production technology. KDX owns world Top one annual production 240 millions square meters optical film industry cluster,independent R&D and production and dedicated on compound material production for 15 years.

2. advanced 3D image design: owns top-level 3D design team,prefessional for more than 10 years in 3D image field and abundant industry solution experience.

3. whole industry chain: including raw material R&D, design, production,sales etc whole steps,provide whole industry chain solution,one-stop-shop service.

4. advanced production quality level: it adopts UV curving, aligment lamination etc advanced manufacturing technics, and makes strict quality ocntrol.

Service of KDX
2D image to 3D image conversion
