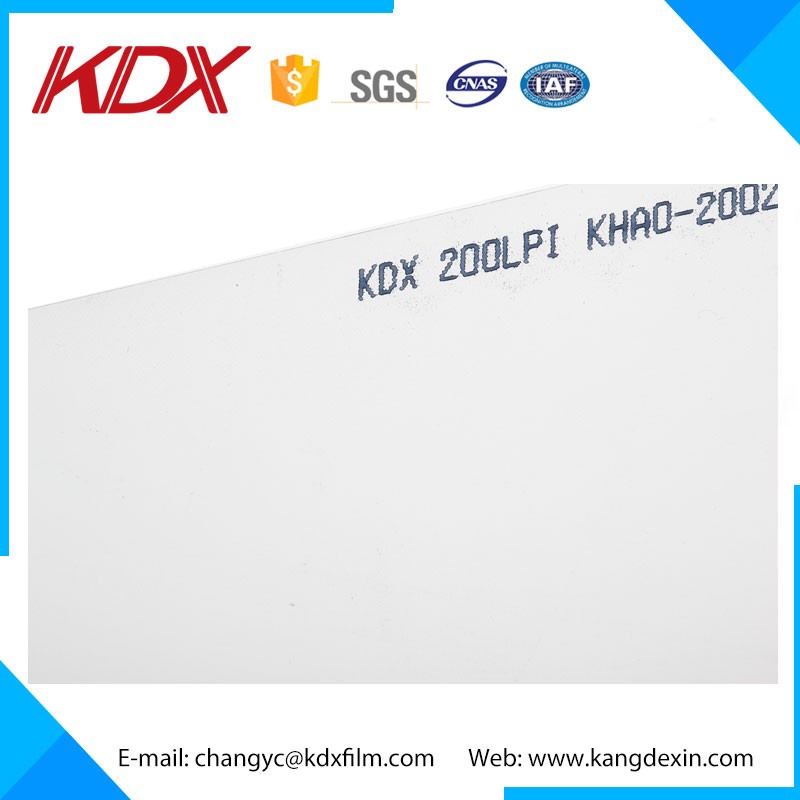

Optical Grade PET Film 3D Lenticular Lens Sheet Plastic For 3D Picture/3D Poster/3D Bookmark/3D Fridgemat

FOB Reference Price:Get Latest Price
US $0.8-2.3 / Pieces | 100 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Beijing, China (Mainland)
Brand Name:
KDX
Model Number:
3D lenticular sheet
Material:
Optical Grade PET Film+UV resin
Thickness:
0.18-0.9mm board, 0.22-0.57mm film
Size:
710*510mm, 510-360mm board
Keyword:
Sheet Plastic
Certificates:
ROHS, ASTM, CE, HR, SGS
LPI:
20LPI,40LPI,75LPI,100LPI,150LPI,200LPI
Roll Width:
1.16m, 2.1m
Roll Length:
500m
Key points:
PET Film 3D Lenticular Lens Sheet Plastic For 3D Picture/3D Poster
OEM:
Yes
Application:
3D picture 3D printing 3D photo 3D display
Advantage:
Own core technology, high precision optical film technology
Supply Ability
Supply Ability:
5000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
carton
Port
Beijing, Tianjin
Lead Time :
Shipped in 10 days after payment

Optical Grade PET Film 3D Lenticular Lens Sheet Plastic For 3D Picture/3D Poster/3D Bookmark/3D Fridgemat



Sheet Plastic -KDX use the new generation of technology--UV curing process, KDX lenticular sheets have the best 3D effect and best quality ever.

12Lenticular roll sheet material Thermal Laminating Film 3D Attractive 3d lenticular lens film

Lenticular-Lenses

bopp lamination film bopp film roll bopp thermal film plastic bopp film printed bopp film bopp film bopp lenticular thermal lamination film metallized bopp film 3D lenticular lenses film pictures10



1  3D Printing 3D phone case 3D printing with light box decorative painting2 3D Printing 3D phone case 3D printing with light box decorative painting3 3D Printing 3D phone case 3D printing with light box decorative painting4 3D Printing 3D phone case 3D printing with light box decorative painting5 3D Printing 3D phone case 3D printing with light box decorative painting6 3D Printing 3D phone case 3D printing with light box decorative painting7 3D Printing 3D phone case 3D printing with light box decorative painting8 3D Printing 3D phone case 3D printing with light box decorative painting9 3D Printing 3D phone case 3D printing with light box decorative painting



COMPARISON





KDX

(UV CURING)

OTHER BRANDS

(EXTRUSION)

THICKNESS tolerance (um)

5

50

SINGLE LENS PITCH tolerance (um)

0.1

5

LENS HEIGHT tolerance (um)

3

5

Light transmittance (%)

>90%

80

Surface hardness (h)

HB~H

B~H

Slitting tolerance (um)

25

50

Stability

High

Low, severe deviation of the lens, especially on the edge.

Clearness

Clear

Focus is inaccurate and fuzzy

Comfort

Comfortable

Dizzy

Non-defective rate

More than 90%

Less than 60%







Product line



LPI

Material

Thickness
(mm)

Size 1

Size 2

Viewing angle

Note

3D 20LPI

APET

0.236

2.1m x 500m (1 roll)

11.95°

Require 9.7mm PS board

Flip 20LPI

APET

0.28

2.1m x 500m (1 roll)

18.6°

Require 6mm PS board

3D 40LPI

APET

0.229

1.16m x 500m (1 roll)

18.04°

Require 2.9mm PS board

Flip 40LPI

APET

0.254

1.16m x 500m (1 roll)

26°

Require 2mm PS board

75LPI

APET

0.491

510mm*360mm(lenticular parallel to 360mm side)

510mm*710mm(lenticular parallel to 710mm side)

57.8°



90LPI

APET

0.57

510mm*360mm(lenticular parallel to 360mm side)

510mm*710mm(lenticular parallel to 710mm side)

43.2°



3D 100LPI

APET

0.562

510mm*360mm(lenticular parallel to 360mm side)

510mm*710mm(lenticular parallel to 710mm side)

39.8°



Flip 100LPI

APET

0.364

510mm*360mm(lenticular parallel to 360mm side)

510mm*710mm(lenticular parallel to 710mm side)

58.3°



150LPI

APET

0.378

510mm*360mm(lenticular parallel to 360mm side)

510mm*710mm(lenticular parallel to 710mm side)

42.3°







Advantage
KDX use optical grade PET film, coating the UV liquid resin on the PET surface first (resin layer thickness < 0.1 mm), use the property of the UV resin curing when it's exposed in UV light in engraving process, achieve the UV resin convert to the lenticular structure in the PET surface .The whole production process in dust-free, constant temperature, and constant humidity workshop, and use the ultra-precision engraving cylinder, without heating and cooling.

The benefit we can get from UV curing cold process
1. The lens structure is made of acrylic resin, which has better optical property than only PET.Because UV curing process is a cold process. So the optical property of PET material won't have any change during the producing process. KDX lenticular sheets are clearer, brighter, the transparency reaches 90%+. These together makes much better 3D effect.

2. The pitch of every single lens is the same, the tolerance is only 0.1u. So there's no distortion of the image, and no dizziness feeling while viewing.

3. The hardness of acrylic resin is higher than PET. So the anti-scratching property is better.

Service
2D image to 3D image conversion.
