Transparent PET LPI 3D Lenticular Lens Sheet Film Roll

FOB Reference Price:Get Latest Price
US $4.5-6.5 / Square Meters | 44 Square Meter/Square Meters about one roll film (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Material:
PET
Type:
Optical film
Usage:
3D Poster, Ad Picture
Feature:
Make 3D /flip products
Hardness:
Soft
Processing Type:
Injection Molding
Transparency:
Transparent
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
KDX
Model Number:
kdx- 3d 20lpi lenticular roll film
Keywords:
3D Lenticular lens sheet Roll
Process:
UV curing cold process
LPI:
3D 20LPI lenticular
Thickness:
0.236mm
Size:
20m(L)x2.16m(W)
Largest size:
500m(L)x2.16m(W)
Key Point:
Lenticular Lens Sheet Film Roll Lenticular For 3D Product
Manufactory:
KDX
Supply Ability
Supply Ability:
10000 Roll/Rolls per Month
Packaging & Delivery
Packaging Details
Carton and pallet
Port
Shanghai, Shenzhen
Lead Time :
Shipped in 7 days after payment

Transparent 20LPI 0.236mm 3D PET Lenticular Lens Sheet Film Roll

Product Description



ItemPET lenticular film roll
LPI20lpi
Effect3D (also provide flip effect lenticular)
Thickness0.236mm
Size20m(L)x2.16m(W) ; 500m(L)x2.16m(W)
Packingone roll in one carton or wood case
MOQone roll
Serviceconvert your 2D picture to 3D design
Related products40lpi, 75lpi, 100lpi, 150lpi, 200lpi lenticular material, PET adhesive in roll

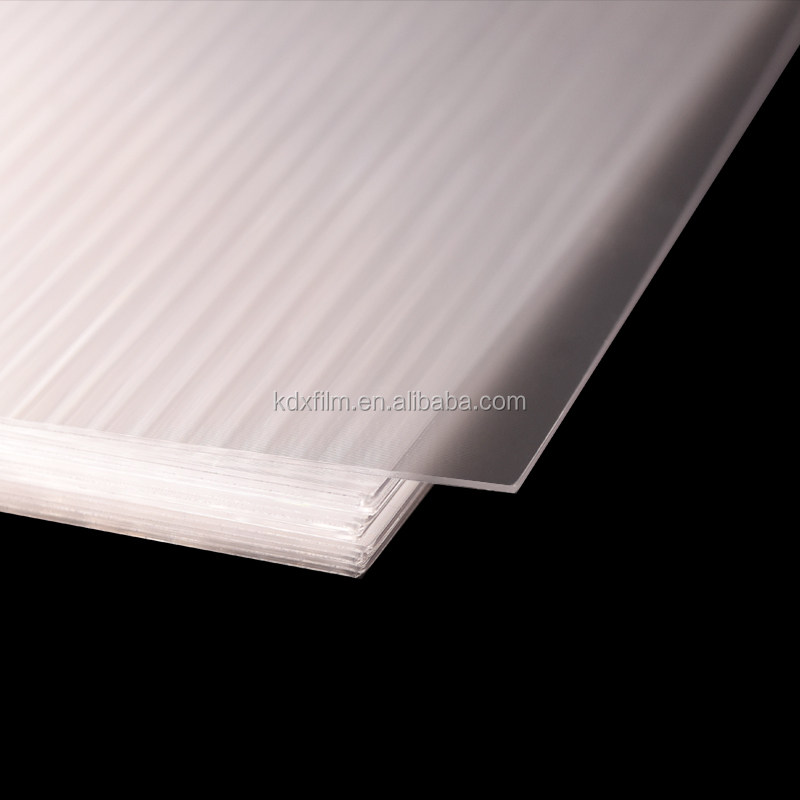

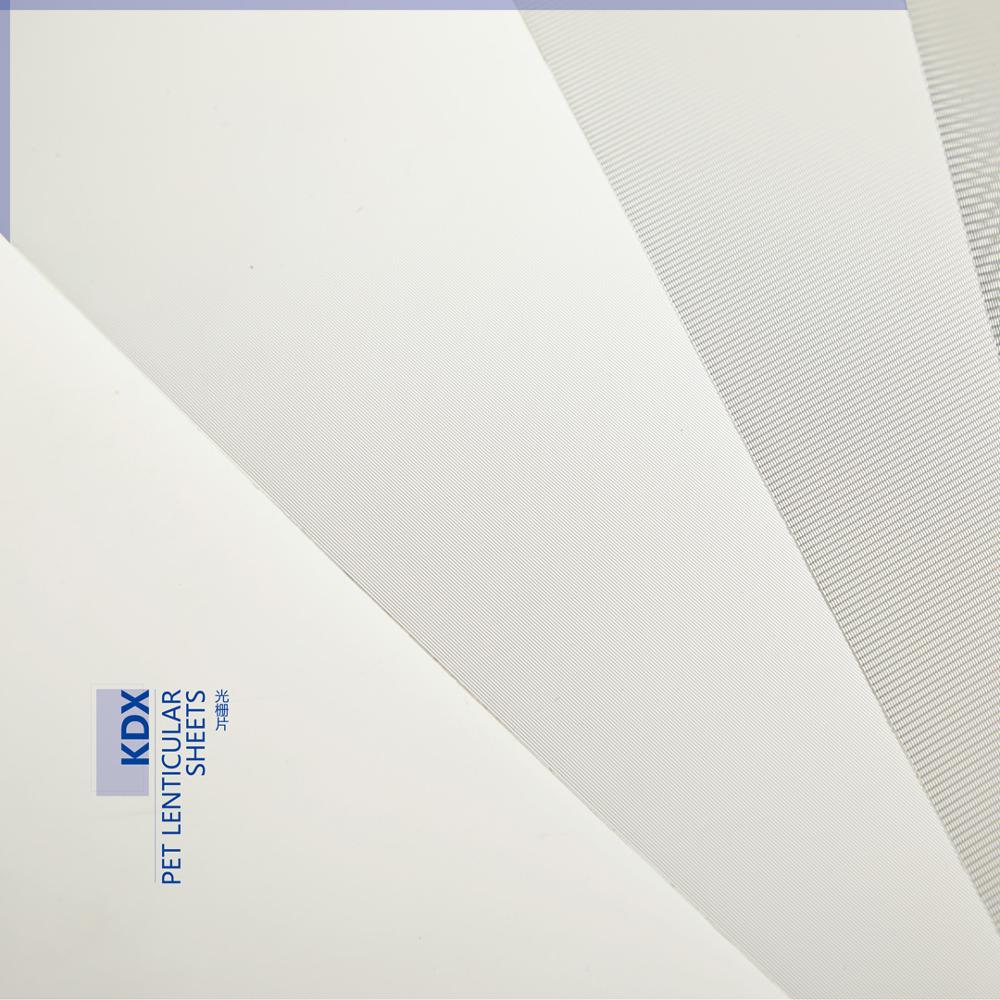

Details of lenticular roll sheet material

Lenticular Sheets film.jpg

lenticular sheet and board.jpg





Comparison of KDX and other brands



KDX

(UV CURING)

OTHER BRANDS

(EXTRUSION)

THICKNESS tolerance (um)

5

50

SINGLE LENS PITCH tolerance (um)

0.1

5

LENS HEIGHT tolerance (um)

3

5

Light transmittance (%)

>90%

80

Surface hardness (h)

HB~H

B~H

Slitting tolerance (um)

25

50

Stability

High

Low, severe deviation of the lens, especially on the edge.

Clearness

Clear

Focus is inaccurate and fuzzy

Comfort

Comfortable

Dizzy

Non-defective rate

More than 90%

Less than 60%



Advantage of KDX lenticular



1. premium optical film technology: high precision,high resolution,high uniformity, large width 3D film production technology. KDX owns world Top one annual production 240 millions square meters optical film industry cluster,independent R&D and production and dedicated on compound material production for 15 years.



2. advanced 3D image design: owns top-level 3D design team,prefessional for more than 10 years in 3D image field and abundant industry solution experience.



3. whole industry chain: including raw material R&D, design, production,sales etc whole steps,provide whole industry chain solution,one-stop-shop service.



4. advanced production quality level: it adopts UV curving, aligment lamination etc advanced manufacturing technics, and makes strict quality ocntrol.



Benefit of KDX technology - UV curing cold process



1. The lens structure is made of acrylic resin, which has better optical property than only PET.



Because UV curing process is a cold process. So the optical property of PET material won't have any change during the producing process. KDX lenticular sheets are clearer, brighter, the transparency reaches 90%+. These together makes much better 3D effect.



2. The pitch of every single lens is the same, the tolerance is only 0.1u. So there's no distortion of the image, and no dizziness feeling while viewing.



3. The hardness of acrylic resin is higher than PET. So the anti-scratching property is better.



Service from KDX manufacture

- one stop service and solution

- 20lpi, 40pi, 75lpi, 100lpi, 200lpi lenticular material,

- PET lenticular board ( can print directly )

- 3D / flip final products

- PET adhesive roll

- 2D image to 3D image conversion



Package of lenticular roll

lenticular film package .jpg

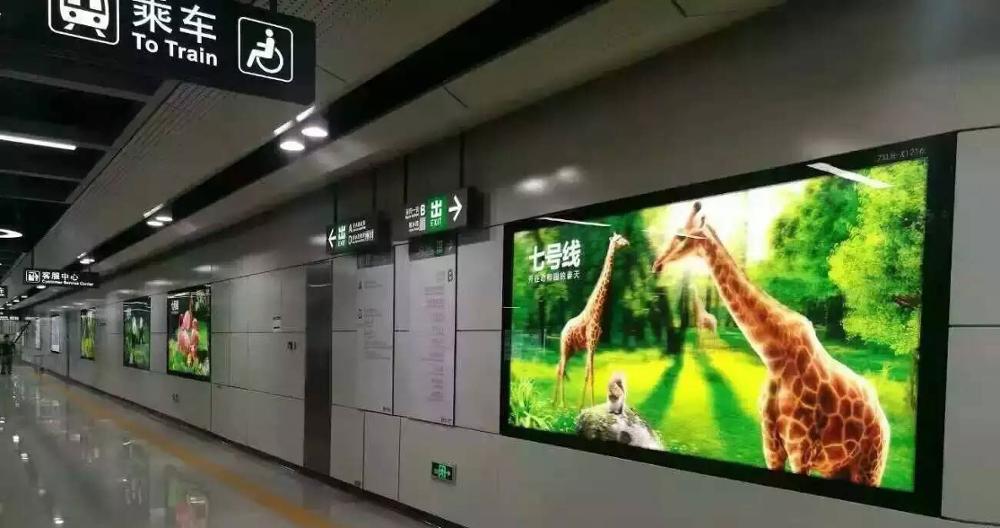

Appliction of lenticular roll film

3D / Flip decorative picture, large format poster , attractive advertising etc.



Company Information

 Beijing KDX manufactory.jpg KDX CO.,LTD is a manufactory of Glasses-Free 3D products with R&D, and provides customers with one stop service, creating and converting the 2D picture to 3D/ Flip designs, produce the PET lenticular material and 3D/Flip finished products, such as cards, photos, pictures, light boxes, phone cases, posters etc.(stock code: 002450)



KDX provides the whole product chain and solution of lenticular product.
a. The material, including the lenticular sheet and lenticular board.
b. The final product, including the 3D light box, 3D culture products, 3Dpackaging etc.
c. The 3D production center program, including the 3D production center solution and the training course of making 3D light box.
d. The service, which is the 2D image to 3D image conversion.
e. Marketing support, to introduce the end users to local KDX authorized 3D production center.
