Plastic PET Material 3D and Flip 200 Lpi Lenticular Lens Sheet with Adhesive

FOB Reference Price:Get Latest Price
US $1.3-2.5 / Pieces | 200 Piece/Pieces one carton (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
kDX
Model Number:
200lpi lenticular lens sheet
Material:
PET
Thickness:
0.215mm
Size:
710mm x 510 mm
Keywords:
PET 3d lenticular lens sheet , 3d lenticular lens sheet
Newest process for pet lenicular:
UV curing process
Plastic pet lenticular LPI:
200LPI (also provide 20LPI, 40LPI ,75lpi, 100lpi,150lpi)
Thickness of lenticular sheets:
0.215mm
Width x Length (mm):
710 x 510 mm
Feature of 3D lenticular sheets:
wearproof and scratch resistance, clear
Company Advantage:
one stop service, create 3D pic
Remark:
we produce the 40lip, 20lpi in roll film, convenient transportation
Application of 3D lenticular sheets:
3D and flip effect advertisement light box, picture, card etc.
Key Point:
plastic PET material 75/100/200 Lpi 3d lenticular lenses sheet
Supply Ability
Supply Ability:
80000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Carton and pallet for lenticular material
Port
TianJin, Shanghai
Lead Time :
Shipped in 7 days after payment
Product Description

Plastic PET Material 3D and Flip 200 Lpi Lenticular Lens Sheet with Adhesive.

KDX provides customers with one stop service, creating and converting the 2D picture to 3D/ Flip designs, producing the PET lenticular sheets film material and 3D/Flip finished products, such as cards, photos, pictures, light boxes, phone cases, posters etc. KDX also provides adhesive and board for 3D lenticular finished products.

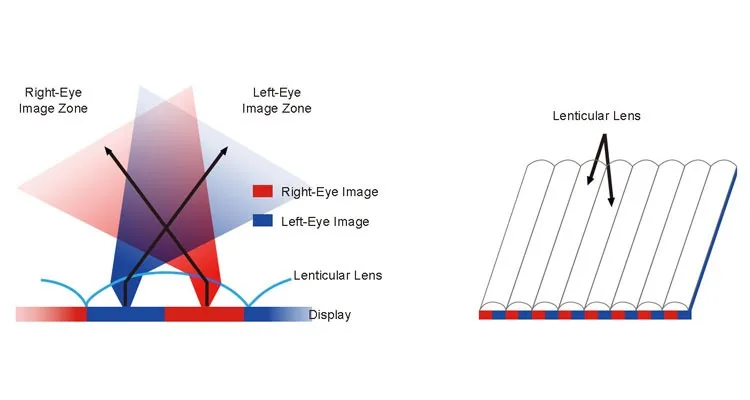

A lenticular lens is an array of magnifying lenses, designed so that when viewed from slightly different angles, different images are magnified. The most common example is the lenses used in lenticular printing, where the technology is used to give an illusion of 3D depth, or to make images that appear to change or move as the image is viewed from different angles.

The Uniqueness of KDX Lenticular Sheet & Film.

KDX is using the latest technology---UV curing process, KDX lenticular sheet & film has the best 3D effect and best quality than ever. KDX uses optical grade PET/APET film, coating the UV liquid resin on the PET/APET surface at first(resin layer thickness <0.1mm), to use the property of the UV curable resin when it is exposed to UV light via an engraving process, to apply the lenticular structure from the UV resin onto the PET/APET surface. The whole production process is carried out in a dust free environment, regulated temperature, humidity stabilized environment and uses an ultra- precise engraving cylinder, without heating and cooling. Other brands are using the old extrusion process, use of heat, extruding and cooling process.

Comparison of KDX lenticular material with Other brand
Item
KDX (UV CURING)
OTHER BRANDS (EXTRUSION)
THICKNESS tolerance (um)
5
50
SINGLE LENS PITCH tolerance (um)
0.1
5
LENS HEIGHT tolerance (um)
3
5
Light transmittance (%)
>90%
80
Surface hardness (h)
HB~H
B~H
Slitting tolerance (um)
25
50
Stability
High
Low, severe deviation of the lens, especially on the edge.
Clearness
Clear
Focus is inaccurate and fuzzy
Comfort
Comfortable
Dizzy
Non-defective rate
More than 90%
Less than 60%
Detailed Images

Plastic PET Material 3D and Flip 200 Lpi Lenticular Lens Sheet with Adhesive.

1. The lens structure is made of acrylic resin, which has better optical property than only PET.
2. Because UV curing process is a cold process. So the optical property of PET material won't have any change during the producing process. KDX lenticular sheets are clearer, brighter, the transparency reaches 90%+. These together makes much better 3D effect.
3. The pitch of every single lens is the same, the tolerance is only 0.1u. So there's no distortion of the image, and no dizziness feeling while viewing.

Plastic PET Material 3D and Flip 200 Lpi Lenticular Lens Sheet with Adhesive
Process
Newest technology cold UV Curing Process
Material
PET lenticular sheets
Lenticular LPI
200 lpi  ( 20lpi, 40lpi, 75lpi,100lpi, 150lpi, 200lpi all available)
Effect
3D and Flip
Size
710x510mm
Thickness
0.215mm
3d lenticular package .jpg
Picture conversion service (2d pic to 3d design)
Made finished products (3D poster, advertising light box, phone case, etc )
Provide adhesive, PS board

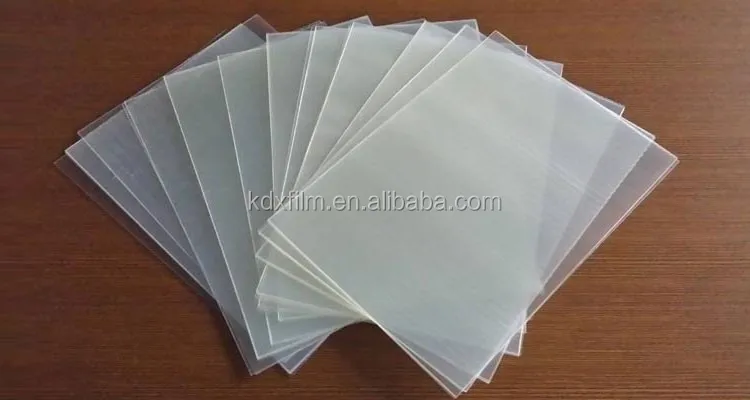

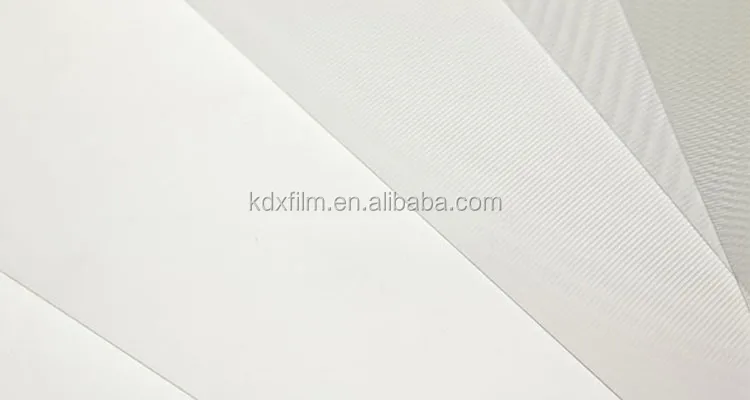

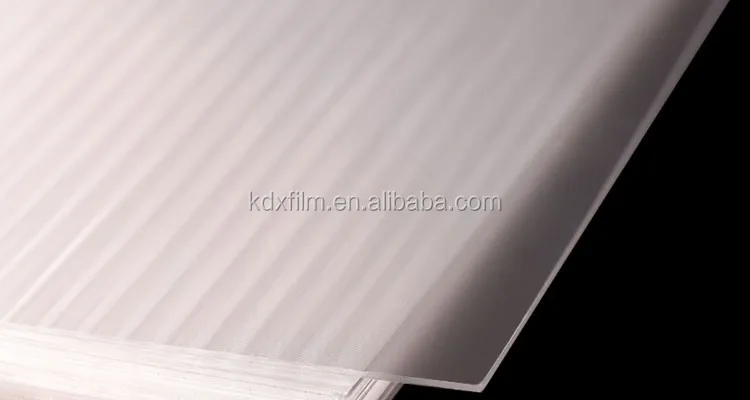

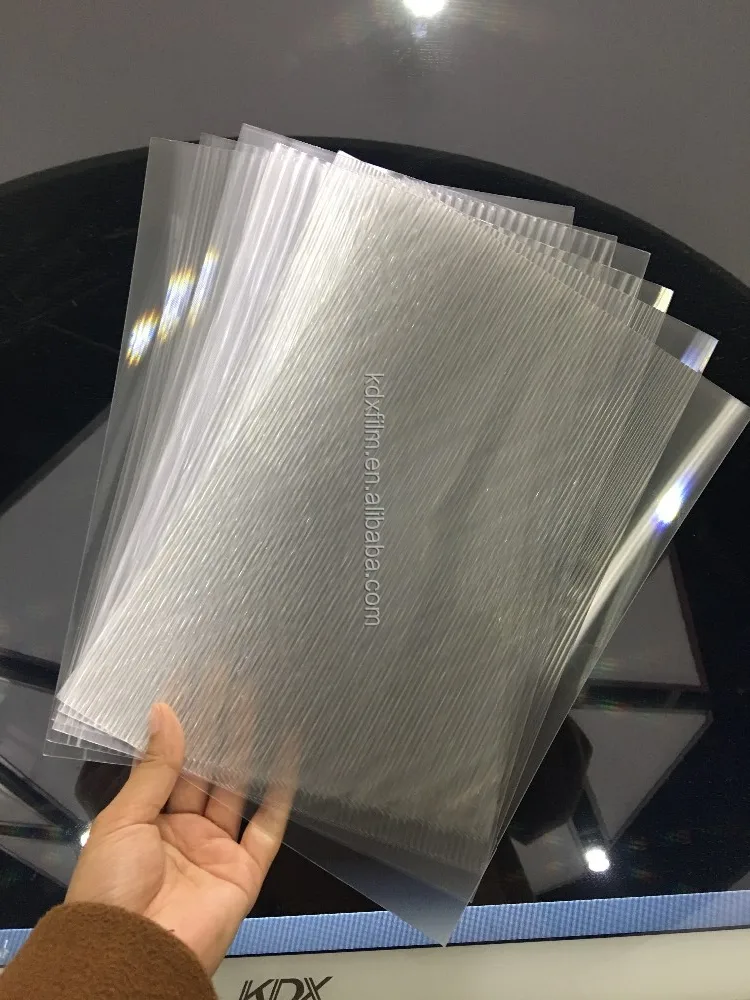

Lenticular Lens Sheet
Feature
1, Anti-scuff, waterpoof,heat resistant,
2, Surport CMYK full colours process printing, fresh and stable color
3, Any logo & shape can be done as customer's design
4,uitable for promotion, advertising and educational

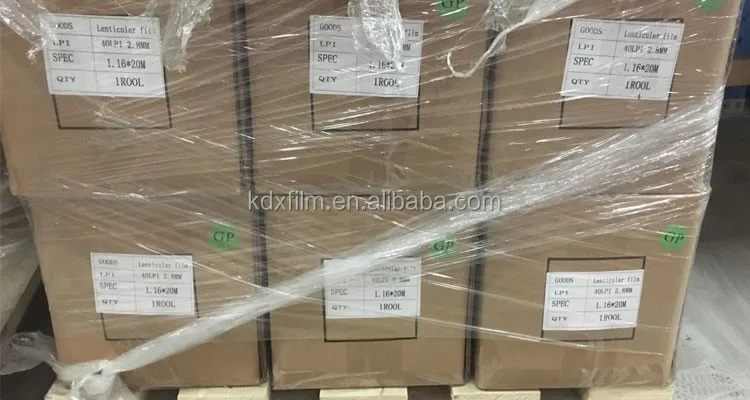

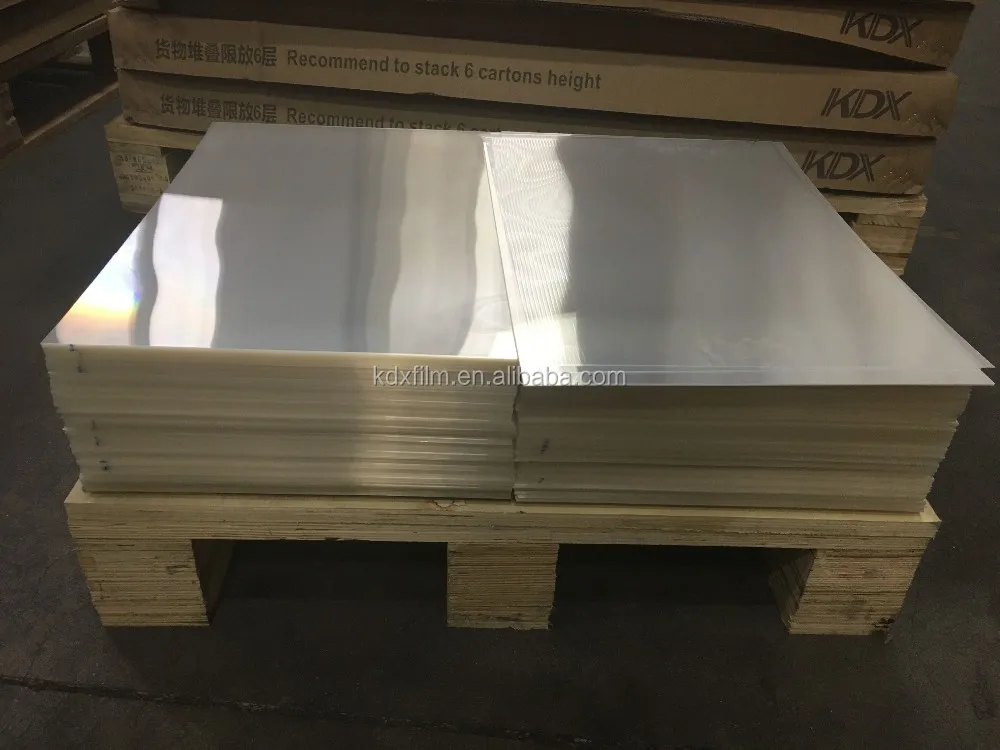

Package
Carton with wrapping film on pallet
 MOQ
200pcs lenticular sheet in one carton
Keyword
Lenticular Lens Sheet
KDX PET Material 3D and Flip Lenticul Sheet and Film
Product
LPI
Effect
Material
Shape
Thickness
Size(mm)
MOQ
Note
Print type
Lenticular film
20
3D
PET






Roll material
0.236mm
width:
2160mm





20m/roll
or

with
9.7mm PS board
inkjet/UV flatbed
Lenticular film
20
Flip
PET
0.28mm
width:
2160mm
with
6mm PS board
inkjet/UV flatbed
Lenticular film
40
3D
PET
0.229mm
width:
1160mm
with
2.8mm PS board
inkjet/UV flatbed
Lenticular film
40
Flip
PET
0.254mm
width:
1160mm
with
2mm PS board
inkjet/UV flatbed
Lenticular sheets
75
3D
PET






Sheet material
0.6mm




710x510 (lens run parallel to both sides)
100 sheets
/
offset
Lenticular sheets
75
Flip
PET
0.45mm
100 sheets
/
offset
Lenticular sheet
100
3D
PET
0.6mm
100 sheets
/
offset
Lenticular sheet
100
Flip
PET
0.35mm
200 sheets
/
offset
Lenticular sheet
150
3D
PET
0.26mm
200 sheets
/
offset
Lenticular sheet
200
3D
PET
0.215mm
200 sheets
/
offset
Related Products

Plastic PET Material 3D and Flip 200 Lpi Lenticular Lens Sheet with Adhesive.

Lenticular film roll: 20LPI, 40LPI lenticular film .
Lenticular lens sheet: 75LPI, 100LPI, 200LPI lenticular sheet.
Lenticular Board: 20LPI, 40LPI lenticular board.
Double-side adhesive: Clear PET adhesive for Lenticular printing, width: 1.27m/1.52m ; length: 36m/roll

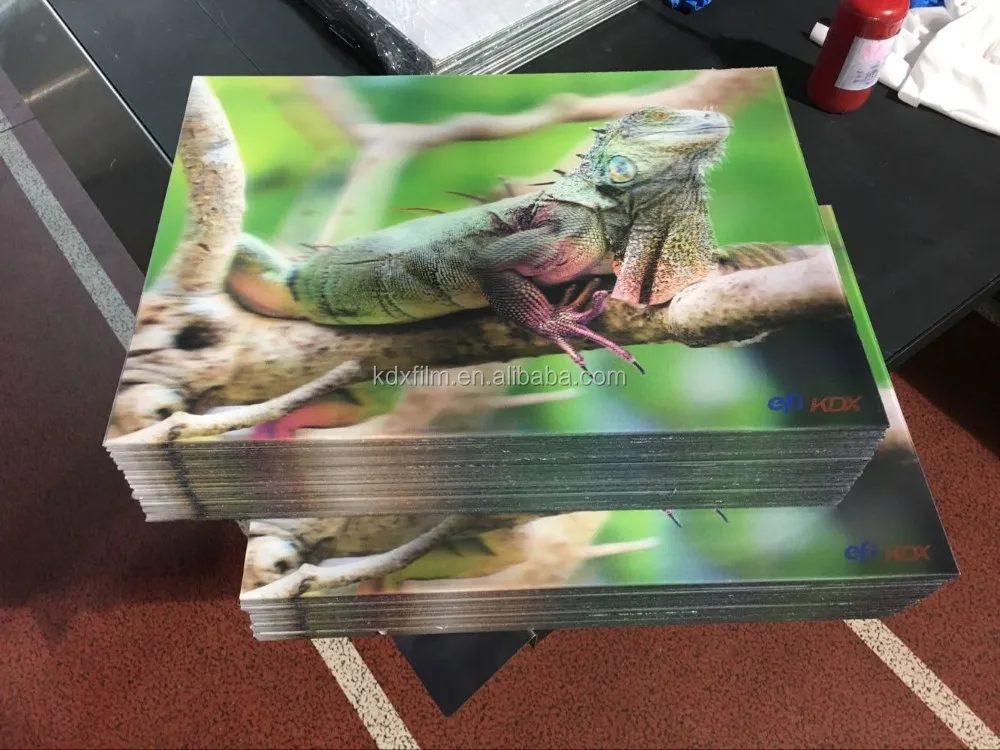

3D lenticular picture.

3D/flip final lenticular products

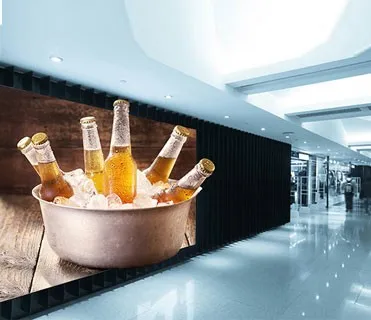

3D lenticular poster.

Large poster in subway (20lpi /40lpi)

75LPI Lenticular sheet

710x510mm 75lpi lenticular sheet

100LPI lenticular sheet.

710x510mm 100lpi lenticular sheet

40lpi lenticular roll film.

Apply for big posters and pictures

20lpi lenticular board.

Can be printed by flatbed printer directly by 5 mins

KDX glasses-free 3D lenticular advantage.

1. premium optical film technology: high precision,high resolution,high uniformity, large width 3D film production technology. KDX owns world Top one annual production 240 millions square meters optical film industry cluster,independent R&D and production and dedicated on compound material production for 15 years.
2. advanced 3D image design: owns top-level 3D design team,prefessional for more than 10 years in 3D image field and abundant industry solution experience.
3. whole industry chain: including raw material R&D, design, production,sales etc whole steps,provide whole industry chain solution,one-stop-shop service.
4. advanced production quality level: it adopts UV curving, aligment lamination etc advanced manufacturing technics, and makes strict quality ocntrol.

Our Company

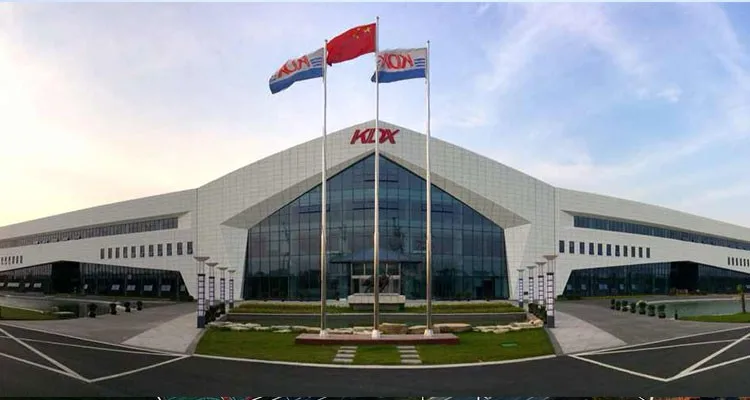

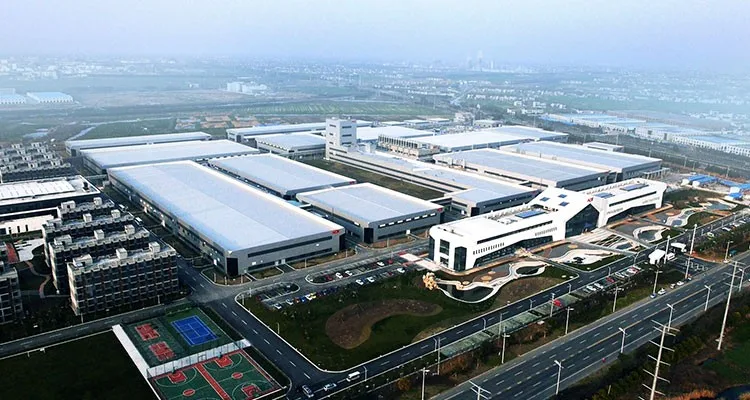

KDX Group

KDX Composite Material Co.,Ltd. was founded in 2001, and made its IPO on the Shenzhen Stock Exchange (stock code: 002450). The company owns 3 industry groups which are New Material, Intelligent 3D Display and New Energy Electrical Vehicle, 5 manufacturing bases, 14 subsidiaries. It is an international corporation with core employee stock ownership plans, and is also the most important polymer composite film platform company in China. Through the close cooperation between our R&D and Philips, KDX is capable of offering our clients the HD intelligent class-free 3D all series solutions. The company has also strategically planned the 3D production, content distribution and display segment as well as built-up and development of the intelligent 3D display eco-chain system which is based on the Internet.
