75 inch capacitive multi touch screen display with overlay

FOB Reference Price:Get Latest Price
US $3,500-5,500 / Sets | 1 Set/Sets (Min. Order)
Model Number:
KC65S502D1 KC75S502D1 KC86B501D1
Report Suspicious Activity
Overview
Quick Details
Products Status:
Stock
Screen Size:
75inch
Type:
TFT
Interface Type:
USB, HDMI, VGA, LAN, LINE, MIC
Resolution:
1920*1080
Brand Name:
KDX
Place of Origin:
Beijing, China (Mainland)
Key points:
75 inch capactive multi touch screen dispaly with overlay
Panel Type:
Capacitive Touch Screen panel
Panel size:
75 inch
Keywords:
capactive touch screen
Touch Screen:
Capacitive Touch Screen
Response time:
10ms
Touch technology:
Capacitive touch
Touch points:
Max.20
Touch screen OS:
Android+ Windows
Power:
100~240VAC(50~60Hz),Typ.250W
Supply Ability
Supply Ability:
3000 Set/Sets per Month
Packaging & Delivery
Packaging Details
Firm, safe, standard cartons with foams Wooden Shelf ;
Customized packing for 75 inch multi touch screen overlay
Port
Shanghai

75 inch capacitive multi touch screen display with overlay

65inch, 75inch, 86inch, 98inch all available

Advantage:



  • Capacitive touch screen, max. Support 20 touch points
  •  ITO film for 75 inch multi touch screen overlay
  • OS: Android and Windows optional, or support dual OS
  • Wireless Screen Mirroring: Realize Screen Mirroring with KDX large size IPF via PC, MAC, PAD and smart phone, Files transfer & Remote control
  • For applications of Education and Meeting conference
  •  High sensitiveness

Model

Item

75” IFP (All-in-One Interactive Touch Screen)

Model Name

KC75S502D1

Display Feature

Backlight

LED

Display Color

10it/1.07B colors

Display Ratio

16:9

Brightness

350cd/m²

Active display area(mm)

1650.24(H)*928.26(V)

Contrast

4000:1

Resolution

3840(H)*2160(V)

View angle

178°/178°

Response time

6.5ms

Working life

30,000 Hrs(min)

Refresh rate

60Hz





Video /Audio/Speakers

Video decoding

Support H.264,VP8,RV,WMV,AVS,H.263,MPEG4 video formats in1080P

Type of speakers

Built-in dual speakers

Speakers output

2*10W

Touch Feature

Response time

≤10ms

Touch precision

Single finger :±1mm

10 fingers: ±2.5mm

Recognition

ITO

Communication mode

Full-speed USB 2.0

Touch point

20 touch points

Driver

No need

Anti-light interference

Useable when the light from

a variety of angles

Touch Panel hardness

Tempering anti-explosion level 7

Writing mode

Finger, Capacitive pen





Android platform

OS version

Android 5.0

USB

2*USB3.0+1*USB2.0(front)

CPU

ARM Cortex A53(64Bit) 1.5GHz

HDMI

2*inputs + 1*input(front)

System RAM

2G DDR3

VGA

1*(input)

Storage(flash)

16G

AV

1*(input)

Ethernet

RJ45

TV

Analog TV signals

WIFI

802.11b/g/n

Headphone

1*

OPS(optional part)

OS

WIN7 64 bits

Memory(option)

4G DDR3

CPU

Intel Core I5-4590s(6M Cache,3.0GHz)

Hard disk(option)

500G

WIFI

802.11b/g/n

Graphics card(option)

NVIDIA GT730(2G discrete)

Chipset

Intel H81 Express

VGA

×1

USB

USB 2.0*3, USB 3.0*1

HDMI

×1,support 4K output

Software

Input

HDMI(4K)/VGA input, can connect to external PC to replace projector

Wireless screen mirroring

Windows PC screen mirroring (need install S/W into PC)

Mac screen mirroring (need install S/W into Mac)

Smart phone / PAD Screen mirroring

Support DLNA of all kinds of files, such as video/image/music/Office files etc.

Remote control

Wireless air mouse via smart phone

Smart phone virtual keyboard

Remote-start applications via Smart phone





Touch Whiteboard .jpgall-in -one pc.jpg

Application

Interactive Whiteboard, Intelligent home, Ticket service, Education, Advertising media, Derection service, Exhibition, Intelligent public transport stop board,



Application field
55 inch multi touch screen overlay dispaly apply to machine Finance, Shopping mall, Transportation, Exhibition, Residence, Hospital, Government, College etc.

capactive touch screen.jpg

capacitive multi touch screen

capactive touch screen.jpg

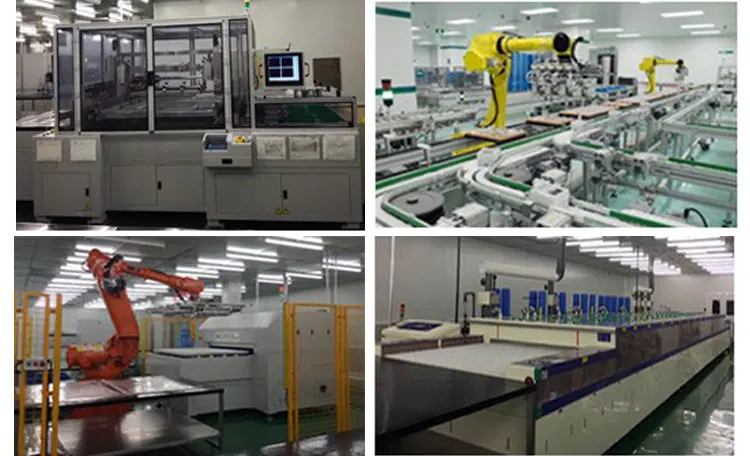

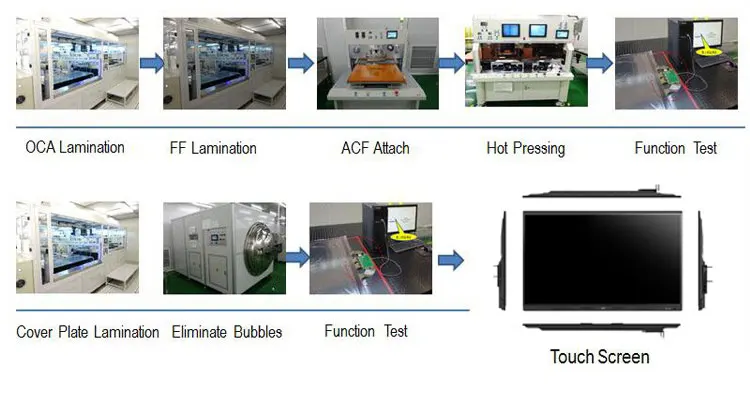

Process & Inspect

Capacitive multi touch screen

capacitive touch screen.jpgmulti touch screen.jpgtouch screen display.jpg

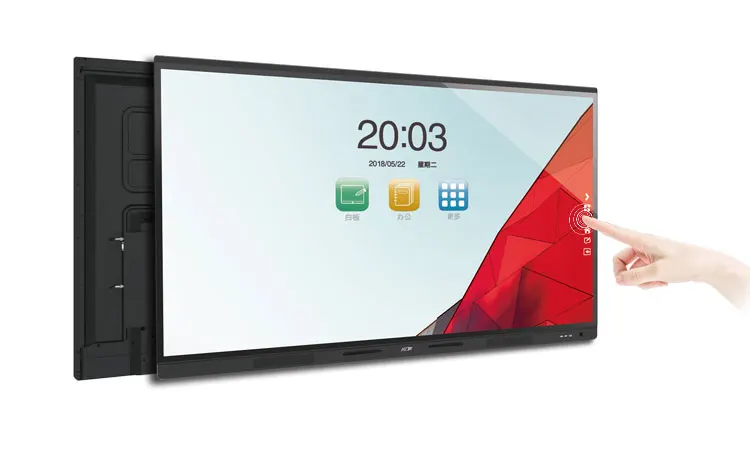

75 inch multi touch screen overlay display

KDX Film co.,ltd will provide you quality products and service,it's a manufactory of Thermal Laminating Films and Glasses-Free 3D products with R&D for 16 years, and our hot products 75 inch multi touch screen overlay display terminal surport 20 touch points.
