China portable interactive large touch screen panel whiteboard IFP for classroom education teacher

FOB Reference Price:Get Latest Price
US $3,500-5,500 / Sets | 1 Set/Sets portable interactive whiteboard (Min. Order)
Model Number:
KC65S502D1
Report Suspicious Activity
Overview
Quick Details
Products Status:
Stock
Screen Size:
65inch
Type:
Capacitive
Interface Type:
USB, RJ45
Resolution:
Max.32767x32767
Brand Name:
KDX
Place of Origin:
Jiangsu, China (Mainland)
Name:
China portable interactive large touch screen panel whiteboard
Panel size:
65 inch large touch screen panel
Keywords:
portable interactive whiteboard
Touch Screen:
interactive large touch screen
Panel Type:
Capacitive Touch Screen
Response time:
10ms
Touch points:
Max.20
Touch technology:
Capacitive touch
Power:
100~240VAC(50~60Hz),Typ.250W
Touch screen OS:
Android+ Windows
Supply Ability
Supply Ability:
60000 Set/Sets per Year
Packaging & Delivery
Packaging Details
Foam Carton and Pallet
Port
Qingdao
Lead Time :
Quantity(Sets) 1 - 1 2 - 10 11 - 100 >100
Est. Time(day) 10 15 25 To be negotiated
Product Description

China portable interactive large touch screen panel whiteboard for classroom education teacher.

(65inch, 75inch, 86inch, 98inch all available)

Product Highlights .

-- Capacitive touch screen whiteboard, max. Support 20 touch points

-- OS: Android and Windows optional, or support dual OS
-- Wireless Screen Mirroring: Realize Screen Mirroring with KDX large size IPF via PC, MAC, PAD and smart phone, Files transfer & Remote control
-- For applications of Education and Meeting conference

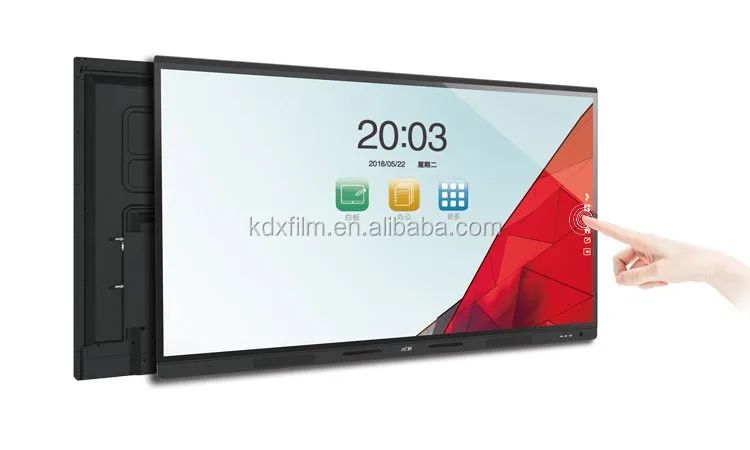

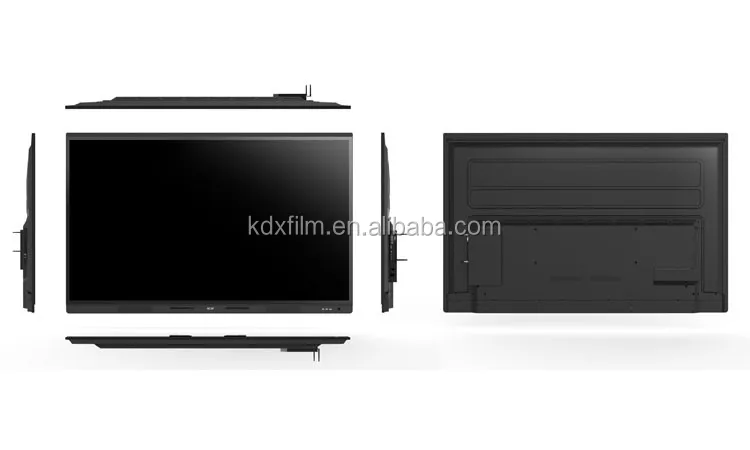

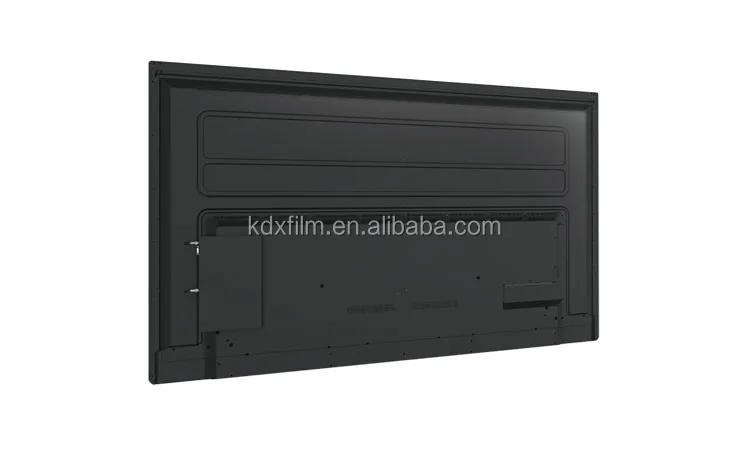

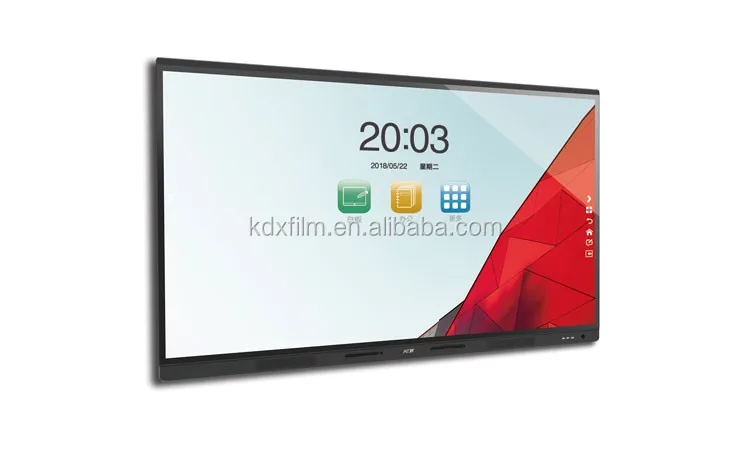

Detailed Image
Capacitive whiteboard Feature  [KDX 65"IFP ]
Backlight
LED
Display Color
8it/16.7M colors
Display Ratio
16:9
Brightness
350cd/m²
Active display area(mm)
1428.48(H)*803.52(V)
Contrast
5000:1
Resolution
3840(H)*2160(V)
View angle
178°/178°
Response time
6.5ms
Working life
30,000 Hrs(min)
Refresh rate
60Hz
Technical Parameters

China portable interactive large touch screen panel whiteboard for classroom education teacher.

China portable interactive large touch screen panel whiteboard for classroom education teacher
Item
65" IFP (All-in-One Interactive Touch Screen)
Model Name
KC65S502D1
Video /Audio/Speakers
Video decoding
Support H.264,VP8,RV,WMV,AVS,H.263,MPEG4 video formats in1080P
Type of speakers
Built-in dual speakers
Speakers output
2*10W
Touch Feature
Response time
≤10ms
Touch precision
Single finger :±1mm
10 fingers: ±2.5mm
Recognition
ITO
Communication mode
Full-speed USB 2.0
Touch point
20 touch points
Driver
No need
Anti-light interference
Useable when the light from
a variety of angles
Writing mode
Finger, Capacitive pen
Android platform
OS version
Android 5.0
USB
2*USB3.0+1*USB2.0(front)
CPU


ARM Cortex A53(64Bit) 1.5GHz
HDMI
2*inputs + 1*input(front)
System RAM
2G DDR3
VGA
1*(input)
Storage(flash)
16G
AV
1*(input)
Ethernet
RJ45
TV
Analog TV signals
WIFI
802.11b/g/n
Headphone
1*
OPS(optional part)
OS
WIN7 64 bits
Memory(option)
4G DDR3
CPU
Intel Core I5-4590s(6M Cache,3.0GHz)
Hard disk(option)
500G
WIFI
802.11b/g/n
Graphics card(option)
NVIDIA GT730(2G discrete)
Chipset
Intel H81 Express
VGA
×1
USB
USB 2.0*3, USB 3.0*1
HDMI
×1,support 4K output
Software
Input
HDMI(4K)/VGA input, can connect to external PC to replace projector
Wireless screen mirroring
Windows PC screen mirroring (need install S/W into PC)
Mac screen mirroring (need install S/W into Mac)
Smart phone / PAD Screen mirroring
Support DLNA of all kinds of files, such as video/image/music/Office files etc.
Remote control
Wireless air mouse via smart phone
Smart phone virtual keyboard
Remote-start applications via Smart phone
Power
Power supply
AC:100~240V 50/60Hz
Power Consumption
<250W
Stand-by consumption
≤0.5W

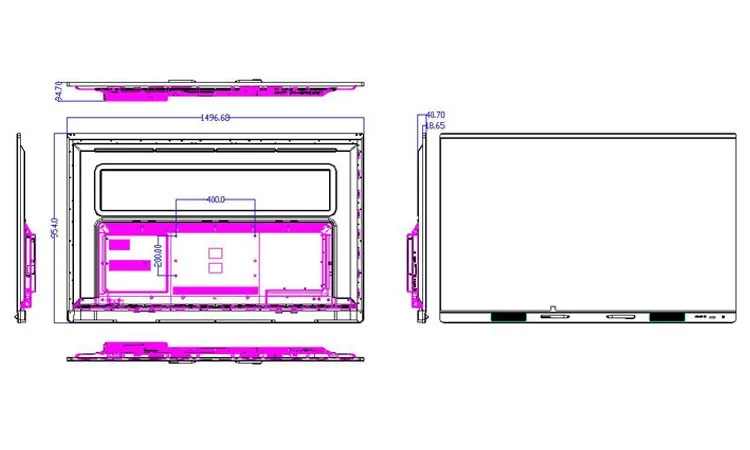

Dimension & Weight
Unit dimension(L*H*W)
1496.7*954*94.7mm
Packing dimension(L*H*W)
1630*1030*230mm
VESA(L*H)
400*200mm
Wall-mounting screws
M8*10mm
Gross weight
52 Kgs (Corrugated Carton)
Net weight
45 Kgs
Usage parameter
Working temperature
0℃~40℃
Working humidity
10%~90%
Our Company

KDX Group.

Kangdexin Composite Material Co., Ltd. (KDX), which was founded in August 2001, is listed on the SME board of the Shenzhen Stock Exchange. With the business strategy of building sustainable ecosystem based on new materials used in various industries, KDX has five major business segments including laminating materials, optoelectronic materials, carbon fiber composite materials, intelligent display, and Internet application. As an international business group, KDX has 6 production bases, 9 research centers, 30+ subsidiaries, and worldwide distribution network. With more than 100 sub-categories, more than 1,000 products, The marketing network covers more than 80 countries and regions around the world. More than 1,600 major customers.
